Planta de Biomasa, Cubillos del Sil, 49.5MW STG electrical part

Country: Spain

Customer: Doosan Škoda Power s.r.o.

Scope of supply:
• Double-channel UNITROL 6000 excitation system
• Generator electrical protections, measurement and synchronization panel
• Generator Main Terminal Box 17.5 kV / 39 00 A

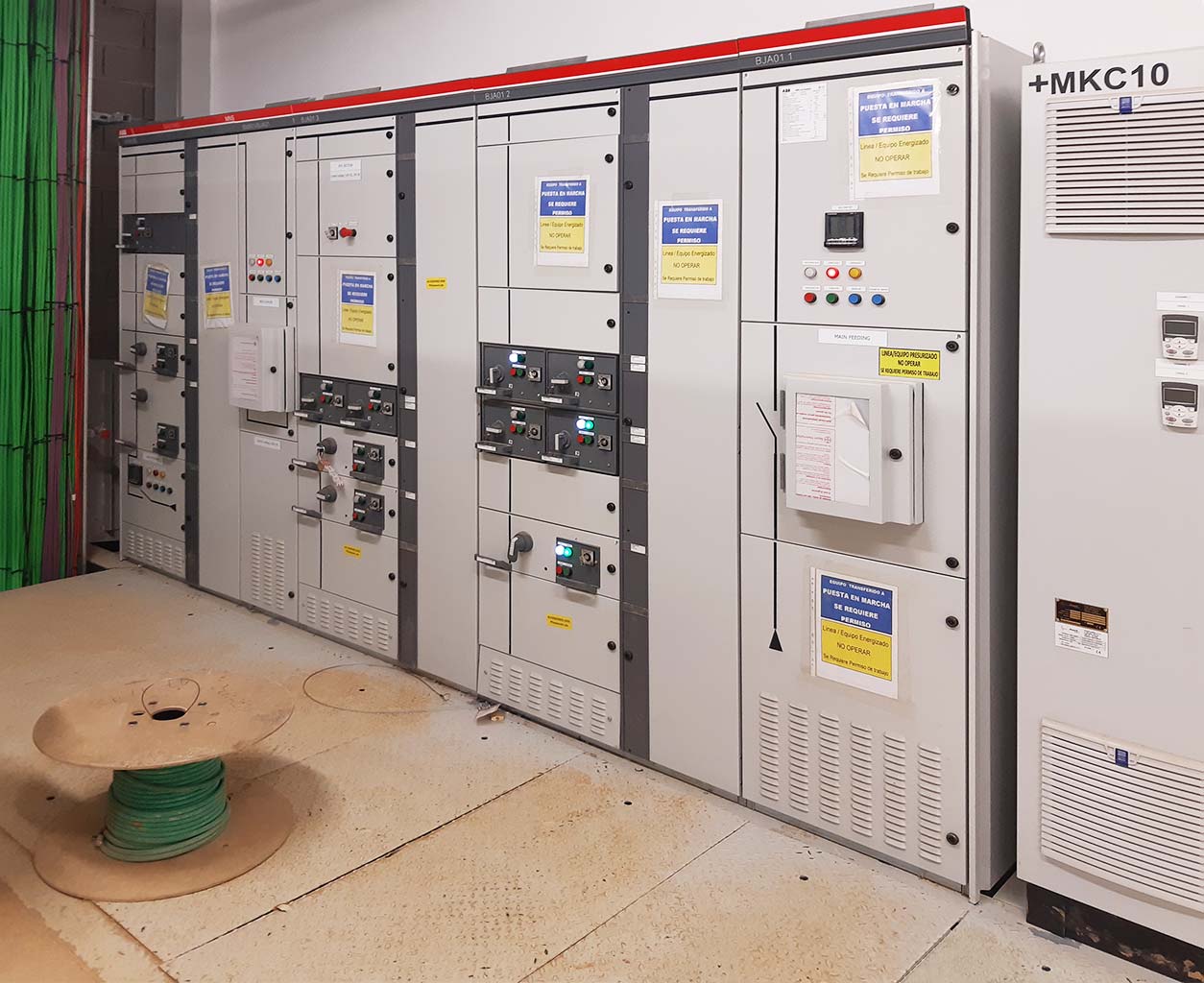

• MCC 400 V, 400 A cabinets
• Cabinets of back-up 110 V DC power supply including station batteries 2 × 260 Ah
• DC start box for the emergency oil pump

Short Unit Description: 67 MVA / 57 MW / 11 kV

Realization: 2019 – 2020
